Performance Speed Limits

Jun 11, 2019 • performancebenchmarking

How fast can it go?

Sometimes you just want to know how fast your code can go, without benchmarking it. Sometimes you have benchmarked it and want to know how close you are to the maximum speed. Often you just need to know what the current limiting factor is, to guide your optimization decisions.

Well this post is about that determining that speed limit¹. It’s not a comprehensive performance evaluation methodology, but for many small pieces of code it will work very well.

Speed Limit

This post is intended to be read from top to bottom, but if it’s not your first time here or you just want to skip to a part you find interesting, here you go:

How fast can it go?
Table of Contents
The Limits
- Big List of Caveats
Pipeline Width
- Remedies
Port/Execution Unit Limits
Memory Related Limits
Memory and Cache Bandwidth
- Remedies
Carried Dependency Chains
- Tools
- Remedies
Front End Effects
Taken Branches
Out of Order Limits
Thank You
Comments

The Limits

There are many possible limits that apply to code executing on a CPU, and in principle the achieved speed will simply be determined by the lowest of all the limits that apply to the code in question. That is, the code will execute only as fast as its narrowest bottleneck.

So I’ll just list some of the known bottlenecks here, starting with common factors first, down through some fairly obscure and rarely discussed ones. The real-world numbers come mostly from Intel x86 CPUs, because that’s what I know off of top of my head, but the concepts mostly apply in general as well, although often different limit values.

Where possible I’ve included specific figures for modern Intel chips and sometimes AMD CPUs. I’m happy to add numbers for other non-x86 CPUs if anyone out there is interested in providing them.

Big List of Caveats

First, lets start with this list of very important caveats.

The limits discussed below generally apply to loops of any size, and also straight line or branchy code with no loops in sight. Unfortunately, it is only really possible to apply the simple analyses described to loops, since a steady state will be reached and the limit values will apply. For most straight line code, however, no steady state is reached and the actual behavior depends on many details of the architecture such as various internal buffer and queue sizes. Analyzing such code sections basically requires a detailed simulation, not a back-of-napkin estimate as we attempt here.
Similarly, even large loops may not reach a steady state, if the loop is big enough that iterations don’t completely overlap. This is discussed a bit more in the Out of Order Limits section.
The limits below are all upper bounds, i.e., the CPU will never go faster than this (in a steady state) - but it doesn’t mean you can achieve these limits in every case. For each limit, I have found code that you gets you to the limit - but you can’t expect that to be the case every time. There may be inefficiencies in the implementation, or unmodeled effects that make the actual limit lower in practice. Don’t call Intel and complain that you aren’t achieving your two loads per cycle! It’s a speed limit, not a guaranteed maximum².
There are known limits not discussed below, such as instruction throughput for not-fully-pipelined instructions.
There are certainly also unknown limits or not well understood limits not discussed here.
More caveats are mentioned in the individual sections.
I simply ignore branch prediction for now: this post just got too long (it’s a problem I have). It also deserves a whole post to itself.
This methodology is unsuitable for analyzing entire applications - it works best for a small hotspot of say 1 to 50 lines of code, which hopefully produce less than about 50 assembly instructions. Trying to apply it to larger stuff may lead to madness. I highly recommend Intel’s Top-Down analysis method for more complex tasks. It always starts with performance counter measurements and tries to identify the problems from there. A free implementation is available in Andi Kleen’s pmu-tools for Linux. On Windows, free licenses of VTune are available though the 90-day community license for System Studio.

Pipeline Width

Intel Skylake: Maximum 4 fused uops per cycle
Intel Ice Lake: Maximum 5 fused uops per cycle
AMD Zen, Zen 2: Maximum 6 MOPs from up to 5 instructions per cycle
AMD Zen 3: Maximum 6 MOPs from up to 6 instructions per cycle
Apple M1: Maximum 8 ops per cycle

At a fundamental level, every CPU can execute only a maximum number of operations per cycle. For many early CPUs, this was always less than one per cycle, but modern pipelined superscalar processors can execute more than one per cycle, up to some limit. This underlying limit is not always be imposed in the same place, e.g., some CPUs may be limited by instruction encoding, others by register renaming or retirement - but there is always a limit (sometimes more than one limit depending on what you are counting).

For modern Intel chips this limit is 4 fused-domain³ operations, and for modern AMD it is 5 macro-operations. So if your loop contains N fused-uops, it will never execute at more than 1 iteration per cycle.

Consider the following simple loop, which separately adds up the top and bottom 16-bit halves of every 32-bit integer in an array:

uint32_t top = 0, bottom = 0;
for (size_t i = 0; i < len; i += 2) {
    uint32_t elem;

    elem = data[i];
    top    += elem >> 16;
    bottom += elem & 0xFFFF;

    elem = data[i + 1];
    top    += elem >> 16;
    bottom += elem & 0xFFFF;
}

This compiles to the following assembly:

top:
    mov    r8d,DWORD [rdi+rcx*4]          ; 1
    mov    edx,DWORD [rdi+rcx*4+0x4]      ; 2
    add    rcx,0x2                        ; 3
    mov    r11d,r8d                       ; 4
    movzx  r8d,r8w                        ; 5
    mov    r9d,edx                        ; 6
    shr    r11d,0x10                      ; 7
    movzx  edx,dx                         ; 8
    shr    r9d,0x10                       ; 9
    add    edx,r8d                        ; 10
    add    r9d,r11d                       ; 11
    add    eax,edx                        ; 12
    add    r10d,r9d                       ; 13
    cmp    rcx,rsi                        ; (fuses w/ jb)
    jb     top                            ; 14

I’ve annotated the total uop count on each line: there is nothing tricky here as instruction is one fused uop, except for the cmp; jb pair which macro-fuse into a single uop. The are 14 uops in this loop, so at best, on my Intel laptop I expect this loop to take 14 / 4 = 3.5 cycles per iteration (1.75 cycles per element). Indeed, when I time this⁴ I get 3.51 cycles per iteration, so we are executing 3.99 fused uops per cycle, and we have certainly hit the pipeline width speed limit.

For more complicated code where you don’t actually want to calculate the uop count by hand, you can use performance counters - the uops_issued.any counter counts fused-domain uops:

$ ./uarch-bench.sh --timer=perf --test-name=cpp/sum-halves --extra-events=uops_issued.any
...
Resolved and programmed event 'uops_issued.any' to 'cpu/config=0x10e/', caps: R:1 UT:1 ZT:1 index: 0x1
Running benchmarks groups using timer perf

** Running group cpp : Tests written in C++ **
                               Benchmark    Cycles    uops_i
        Sum 16-bit halves of array elems      3.51     14.03

The counter reflects the 14 uops/iteration we calculated by looking at the assembly⁵. If you calculate a value very close to 4 uops per cycle using this metric, you know without examining the code that you are bumping up against this speed limit.

Remedies

In a way this is the simplest of the limits to understand: you simply can’t execute any more operations per cycle. You code is already maximally efficient in an operations/cycle sense: you don’t have to worry about cache misses, expensive operations, too many jumps, branch mispredictions or anything like that because they aren’t limiting you.

Your only goal is to reduce the number of operations (in the fused domain), which usually means reducing the number of instructions. You can do that by:

Removing instructions, i.e., “classic” instruction-oriented optimization. Way too involved to cover in a bullet point, but briefly you can try to unroll loops (indeed, by unrolling the loop above, I cut execution time by ~15%), use different instructions that are more efficient, remove instructions (e.g., the mov r11d,r8d and mov r9d,edx are not necessary and could be removed with a slight reoganization), etc. If you are writing in a high level language you can’t do this directly, but you can try to understand the assembly the compiler is generating and make changes to the code or compiler flags that get it to do what you want.
Vectorization. Try to do more work with one instruction. This is an obvious huge win for this method. If you compile the same code with -O3 rather than -O2, gcc vectorizes it (and doesn’t even do a great job⁶) and we get a 4.6x speedup, to 0.76 cycles per iteration (0.38 cycles per element). If you vectorized it by hand or massaged the auto-vectorization a bit more I think you could get to an additional 3x speed, down to roughly 0.125 cycles per element.
Micro-fusion. Somewhat specific to x86, but you can look for opportunities to fold a load and an ALU operation together, since such micro-fused operations only count as one in the fused domain, compared to two for the separate instructions. This generally applies only for values loaded and used once, but rarely it may even be profitable to load the same value twice from memory, in two different instructions, in order to eliminate a standalone mov from memory. This is more complicated than I make it sound because of the complication of de-lamination, which varies by model and is not fully described⁷ in the optimization manual.

Port/Execution Unit Limits

Intel, AMD, Apple: One operation per port, per cycle

Let us use our newfound knowledge of the pipeline width limitation, and tackle another example loop:

uint32_t mul_by(const uint32_t *data, size_t len, uint32_t m) {
    uint32_t sum = 0;
    for (size_t i = 0; i < len - 1; i++) {
        uint32_t x = data[i], y = data[i + 1];
        sum += x * y * m * i * i;
    }
    return sum;
}

The loop compiles to the following assembly. I’ve marked uop counts as before.

.top:
    mov    r10d,DWORD [rdi+rcx*4+0x4] ;  1 y = data[i + 1]
    mov    r8d,r10d                   ;  2 setup up r8d to hold result of multiplies
    imul   r8d,ecx                    ;  3 i * y
    imul   r8d,edx                    ;  4 ↑ * m
    imul   r8d,ecx                    ;  5 ↑ * i
    add    rcx,0x1                    ;  6 i++
    imul   r8d,r9d                    ;  7 ↑ * x
    mov    r9d,r10d                   ;  8 stash y for next iteration
    add    eax,r8d                    ;  9 sum += ...
    cmp    rcx,rsi                    ;    i < len (fuses with jne)
    jne    .top                       ; 10

Despite the source containing two loads per iteration (x = data[i] and y = data[i + 1]), the compiler was clever enough to reduce that to one, since y in iteration n becomes x in iteration n + 1, so it saves the loaded value in a register across iterations.

So we can just apply our pipeline width technique to this loop, right? We count 10 uops (again, the only trick is that cmp; jne are macro-fused). We can confirm it in uarch-bench:

$ ./uarch-bench.sh --timer=perf --test-name=cpp/mul-4 --extra-events=uops_issued.any,uops_retired.retire_slots
....
** Running group cpp : Tests written in C++ **
                               Benchmark    Cycles    uops_i    uops_r
                    Four multiplications      ????     10.01     10.00

Right, 10 uops. So this should take 10 / 4 = 2.5 cycles per iteration on modern Intel then, right? No. The hidden ???? value in the benchmark output indicates that it actually takes 4.01 cycles.

What gives? As it turns out, the limitation is the imul instructions. Although up to four imul instructions can be issued⁸ every cycle, there is only a single scalar multiplication unit on the CPU, and so only one multiplication can begin execution every cycle. Since there are four multiplications in the loop, it takes at least four cycles to execute it, and in fact that’s exactly what we find.

On modern chips all operations execute only through a limited number of ports⁹ and for multiplications that is always only p1. You can get this information from Agner’s instruction tables:

Agner's port usage info

… or from uops.info:

uops-info port usage info

On modern Intel some simple integer arithmetic (add, sub, inc, dec), bitwise operation (or, and, xor) and flag setting tests (test, cmp) run on four ports, so you aren’t very likely to see a port bottleneck for these operations (since the pipeline width bottleneck is more general and is also four), but many operations compete for only a few ports. For example, shift instructions and bit test/set operations like bt, btr and friends use only p1 and p6. More advanced bit operations like popcnt and tzcnt execute only p1, and so on. Note that in some cases instructions which can go to wide variety of ports, such as add may execute on a port that is under contention by other instructions rather than on the less loaded ports: a scheduling quirk that can reduce performance. Why that happens is not fully understood.

One of the most common cases of port contention is with vector operations. There are only three vector ports, so the best case is three vector operations per cycle, and for AVX-512 there are only two ports so the best case is two per cycle. Furthermore, only a few operations can use all three ports (mostly simple integer arithmetic and bitwise operations and 32 and 64-bit immediate blends) - many are restricted to one or two ports. In particular, shuffles run only on p5 and can be a bottleneck for shuffle heavy algorithm.

Tools

In the example above it was easy to see the port pressure because the imul instructions go to only a single port, and the remainder of the instructions are mostly simple instructions that can go to any of four ports, so a 4 cycle solution to the port assignment problem is easy to find. In more complex cases, with many instructions that go to many ports, it is less clear what the ideal solution is (and even less clear what the CPU will actually do without testing it), so you can use one of a few tools:

Intel IACA

Tries to solve for port pressure (algorithm unclear) and displays it in a table. Has reached end of life but can still be downloaded here.

RRZE-HPC OSACA

Essnentially an open-source version if IACA. Displays cumulative port pressure in a similar way to IACA, although it simply divides each instruction evenly among the ports it can use and doesn’t look for a more ideal solution. On github.

LLVM-MCA

Another tool, similar to IACA and OSACA, llvm-mca shows port pressure in a similar way and attempts to find an ideal solution (algorithm unclear, but it’s open source so someone could check). Comes with LLVM 7 or higher and documentation can be found here.

Measuring It

You can measure the actual port pressure using the perf and the uops_dispatched_port counters. For example, to measure the full port pressure across all 8 ports, you can do the following in uarch-bench:

$ ./uarch-bench.sh --timer=perf --test-name=cpp/mul-4 --extra-events=uops_dispatched_port.port_0#p0,uops_dispatched_port.port_1#p1,uops_dispatched_port.port_2#p2,uops_dispatched_port.port_3#p3,uops_dispatched_port.port_4#p4,uops_dispatched_port.port_5#p5,uops_dispatched_port.port_6#p6,uops_dispatched_port.port_7#p7
...
           Benchmark       Cycles           p0           p1           p2           p3           p4           p5           p6           p7
Four multiplications         4.00         0.86         4.00         0.50         0.50         0.00         0.90         1.58         0.00

While noting that that the column naming scheme is really bad in this case, we see that the port1 (the 3rd numeric column) has 4 operations dispatched every iteration, and iterations take 4 cycles, so the port is active every cycle, i.e., 100% pressure. None of the other ports have significant pressure at all, they are all active less than 50% of the time.

Remedies

Of course, any solution that removes instructions causing port pressure can help, so most of the same remedies that apply to the pipeline width limit also apply here.
Additionally, you might try replacing instructions which contend for a high-pressure port with others that use different ports, even if the replacement results in more total instructions/uops. For example, sometimes p5 shuffle operations can be replaced with blend operations: you need more total blends but the resulting code can be faster since the blends execute on otherwise underused p0 and p1. Some 32 and 64-bit register-to-register broadcasts that use p5 don’t use p5 at all if you instead use a memory source, a rare case where memory source can be faster than register source for the same operation.

There are several limits related to the maximum number of memory accesses¹⁰ that can be made per cycle, summarized in the following table. The values indicated are the maximum number of load, stores and accesses (either loads or stores) the CPU can sustain per cycle¹¹.

CPU	Loads	Stores	Accesses
Intel Sandy Bridge, Ivy Bridge	2	1	2
Intel Haswell, Skylake	2	1	3
Intel Ice Lake, Tiger Lake	2	2¹²	4
AMD Zen, Zen 2	2	1	3
AMD Zen 3	3	2	3
Apple M1	3	2	4
Amazon Graviton 2	2	2	2

Load Throughput Limit

Vendor	Microarchitecture	Loads/Cycle
Intel	All Recent¹³	2
AMD	Zen, Zen 2	2
AMD	Zen 3	3¹⁴
Apple	M1	3
Arm/Amazon	Graviton 2	2

Modern big cores from leading vendors have a limit of two or three loads per cycle, which can generally only be achieved if all the loads hit in L1. You could just consider this the same as the “port pressure” limit, since there are generally the same number of load ports as the “maximum loads” figure – but the limit is interesting enough to call out on its own.

Of course, like all limits this is a best case scenario: you might achieve much less than the maximum number of loads if you are not hitting in L1 or even for L1-resident data due to things like bank conflicts present on some chips¹⁵. Still, it is interesting to note how high this limit is: fully half of your instructions can be loads while still running at maximum speed on Intel chips (two loads out of a maximum width of four on pre-Ice Lake Intel), as well as on AMD’s Zen 3 (three loads out of a max width of six). In a throughput sense, loads that hit in cache are not all that expensive even when the point of comparison is simple ALU ops.

Because each loaded value will usually have some computation performed on it, it is not all that common to this hit this limit, but you can certainly do it. The loads have to be mostly independent (not part of a carried dependency chain), since otherwise the load latency will limit you more than the throughput.

One scenario where you might hit this limit is in an indirect load scenario (where part of the load address is itself calculated using a value from memory), or when making heavy use of lookup tables. Consider the following loop, which does an indirect access of data based on the an index read from the offsets array and which then sums the retrieved values¹⁶:

do {
    sum1 += data[offsets[i - 1]];
    sum2 += data[offsets[i - 2]];
    i -= 2;
} while (i);

This compiles to the following assembly:

                                          ; total fused uops
.top:                                     ; ↓
    mov    r8d,DWORD PTR [rsi+rdx*4-0x4]  ; 1
    add    ecx,DWORD PTR [rdi+r8*4]       ; 2
    mov    r8d,DWORD PTR [rsi+rdx*4-0x8]  ; 3
    add    eax,DWORD PTR [rdi+r8*4]       ; 4
    sub    rdx,0x2                        ; (fuses w/ jne)
    jne    .top                           ; 5

There are only 5 fused-uops¹⁷ here, so maybe this executes in 5 / 4 = 1.25 cycles? No… it is not so fast: it takes 2 cycles because there are 4 loads and we have a speed limit of 2 loads per cycle¹⁸.

Note that gather instructions count “one” against this limit for each element they they load. vpgatherdd ymm0, ... for example, counts as 8 against this limit since it loads 8 32-bit elements¹⁹.

Load Split Cache Lines

For the purposes of this speed limit, on Intel, all loads that hit in the L1 cache count as one, except loads that split a cache line, which count as two. A split cache line load is one that crosses a 64-byte boundary. Loads that are naturally aligned never split a cache line. With random alignment, how often you split a cache line depends on the load size: for a load of N bytes, you’ll split a cache line with probability (N-1)/64. Hence, 32-bit random unaligned loads split less than 5% of the time but 256-bit AVX loads split 48% of the time and AVX-512 loads more than 98% of the time.

On AMD Zen 1, loads suffer a similar penalty when crossing a 32-byte boundary – such loads also count as two against the load limit. 32-byte (AVX/AVX2) loads also count as two on Zen 1 since the implemented vector path is only 128-bit, so two loads are needed. Any 32-byte load that is not 16-byte aligned counts as three, since in that case exactly one of the 16-byte halves will cross a 32-byte boundary.

On Zen 2 and 3, there is no such penalty for crossing a 32-byte boundary: as on Intel, a penalty occurs only when crossing a 64-byte cache line boundary.

Remedies

If you are lucky enough to hit this limit, you just need fewer loads. Note that the limit is not expressed in terms of the number of bytes loaded, but rather in the number of loads. So sometimes you can combine two or more adjacent loads into a single load to reduce the total load count.

An obvious application of that is vector loads: 32-byte AVX loads have the same limits byte loads (with some exceptions²⁰). It is difficult to use vector loads in concert with scalar code however: although you can do 8x 32-bit loads at once, if you want to feed those loads to scalar code you have trouble, because you can’t efficiently get that data into scalar registers²¹. That is, you’ll have to work on vectorizing the code that consumes the loads as well.

You can also sometimes use wider scalar loads in this way. In the example above, we do four 32-bit loads - two of which are scattered (the access to data[]), but two of which are adjacent (the accesses to offsets[i - 1] and offsets[i - 2]). We could combine those two adjacent loads into one 64-bit load, like so²²:

do {
    uint64_t twooffsets;
    std::memcpy(&twooffsets, offsets + i - 2, sizeof(uint64_t));
    sum1 += data[twooffsets >> 32];
    sum2 += data[twooffsets & 0xFFFFFFFF];
    i -= 2;
} while (i);

This compiles to:

.top:                                      ; total fused uops
    mov    rcx,QWORD PTR [rsi+rdx*4-0x8]   ; 1
    mov    r9,rcx                          ; 2
    mov    ecx,ecx                         ; 3
    shr    r9,0x20                         ; 4
    add    eax,DWORD PTR [rdi+rcx*4]       ; 5
    add    r8d,DWORD PTR [rdi+r9*4]        ; 6
    sub    rdx,0x2                         ; (fuses w/ jne)
    jne    .top                            ; 7

We have traded ALU operations for loads: this version has seven fused-domain uops versus five in the original, yet on Skylake the new version runs in 1.81 cycles, about 10% faster. The theoretical limit based on pipeline width is 7 / 4 = 1.75 cycles, so we are probably getting collisions on p6 between the shr and the taken branch (unrolling a bit more would help).

Clang 5.0 manages to do better, by one uop:

.top:
    mov    r8,QWORD PTR [rsi+rdx*4-0x8]
    mov    r9d,r8d
    shr    r8,0x20
    add    ecx,DWORD PTR [rdi+r8*4]
    add    eax,DWORD PTR [rdi+r9*4]
    add    rdx,0xfffffffffffffffe
    jne    .top

It avoided the mov r9,rcx instruction by combining that and the zero extension (which is effectively the & 0xFFFFFFFF) into a single mov r9d,rd8. It runs at 1.67 cycles per iteration, saving 20% over the 4-load version, but still slower than the 1.5 limit implied by the 4-wide fused-domain limit.

This code is an obvious candidate for vectorization with gather, which could in principle approach 1.25 cycles per iteration (8 gathered loads + 1 256-bit load from offset per 4 iterations) and newer clang versions even manage to do it, if you allow some inlining so they can see the size and alignment of the buffer. However, the result is not good: it was more than twice as slow as the scalar approach.

Store Throughput Limit

Vendor	Microarchitecture	Stores/Cycle
Intel	<= Skylake	1
Intel	>= Ice Lake	2¹²
AMD	Zen, Zen 2	1
AMD	Zen 3	2²³
Apple	M1	2
Arm/Amazon	Graviton 2	2

Modern mainstream CPUs can perform one or two stores per cycle. For many algorithms that make a predictable number of stores, this is a useful and easy to caculate upper bound on a performance, especially on CPUs where the limit is one store per cycle. For example, a 32-bit radix sort that makes four passes and does two stores per element for each pass²⁴ will never achieve performance better than eight cycles per element on a single store/cycle CPU (in most radix sort implementations, actual performance usually ends up much worse so this isn’t necessarily the dominant factor in practice, only an upper bound on throughput).

This limit applies also to vector scatter instructions, where each element counts as one against this limit.

Store Split Cache Lines

On all recent Intel CPUs, stores that cross a cache line boundary (64 bytes) counts as two against the store limit, but other unaligned stores suffer no penalty.

On AMD the situation is more complicated: the penalties for stores that cross a boundary are larger, and it’s not just 64-byte boundaries that matter.

On AMD Zen, any store which crosses a 16 byte boundary suffers a significant penalty: such stores can only execute one per five cycles, so maybe you should count these as five for the purposes of this limit²⁵.

On AMD Zen 2 and Zen 3, the situation is similar but applies only to stores that cross a 32-byte boundary: stores which cross a 16-byte boundary which is not also a 32-byte boundary suffer no penalty.

Remedies

Remove unnecessary stores from your core loops. Easier said than done, of course!

If you are often storing the same value repeatedly to the same location, it can even be profitable to check that the value is different, which requires a load, and only do the store if different, since this can replace a store with a load. Most of all, you want to take advantage of vectorized stores if possible: you can do 8x 32-bit stores in one cycle with a single vectorized store. Of course, if your stores are not contiguous, this will be difficult or impossible.

In some cases it can be profitable to merge two (or more) narrow stores into a larger one, e.g., two 32-bit stores into a 64-bit store. This trades ALU operations for stores in a similar way to the load example.

On Intel Ice Lake and later CPUs, try to organize your data and store pattern so that the “same cache line” restriction for consecutive stores is met, allowing two rather than one store per cycle.

Total Accesses Limit

Vendor	Microarchitecture	Stores/Cycle
AMD	Zen	2
AMD	Zen 3	3
Apple	M1	4
Arm/Amazon	Graviton 2	2

The individual limits on loads and stores were discussed above, but for the microarchitectures listed above there is a combined limit on both which is less than the sum of the individual limits²⁶. For example, AMD Zen 3 can do three loads per cycle, or two stores per cycle, but only has a total of three address generation units. This means it can’t do three loads and two stores in the same cycle: there is a limit of three memory accesses of any type in total, which may be (for example) three loads and no stores, or one load and two stores, etc.

Remedies

No specific remedies apply to combined limits – the fix is fewer loads and stores, as described in the remedy sections above. The only trick is you need to be aware of this limit when calculating your speed limit.

Complex Addressing Limit

Intel Skylake: Maximum of one load (any addressing) concurrent with a store with complex addressing per cycle.

Recent Intel chips have the same number of AGUs as load and store units, so don’t directly suffer the AGU limit: but they do suffer a related limitation involving complex addressing.

Each load and store operation needs an address generation which happens in an AGU. There are three AGUs on modern Intel Skylake chips: p2, p3 and p7. However, p7 is restricted: it can only be used by stores, and it can only be used if the store addressing mode is simple. Simple addressing is anything that is of the form [base_reg + offset] where offset is in [0, 2047]. So [rax + 1024] is simple addressing, but all of [rax + 4096], [rax + rcx * 2] and [rax * 2] are not.

To apply this limit, count all load and any stores with complex addressing: these operations cannot execute at more than two per cycle.

Since Ice Lake, this limitation no longer applies: load and store units all have a dedicated AGU.

Remedies

At the assembly level, the main remedy is make sure that your stores use simple addressing modes. Usually you do this by incrementing a pointer by the size of the element rather than using indexed addressing modes.

That is, rather than this:

mov [rdi + rax*4], rdx
add rax, 1

You want this:

mov [rdi], rdx
add rdi, 4

Of course, that’s often simpler said than done: indexed addressing modes are very useful for using a single loop counter to access multiple arrays, and also when the value of the loop counter is directly used in the loop (as opposed to simply being used for addressing). For example, consider the following loop which writes the element-wise sum of two arrays to a third array:

void sum(const int *a, const int *b, int *d, size_t len) {
    for (size_t i = 0; i < len; i++) {
        d[i] = a[i] + b[i];
    }
}

The loop compiles to the following assembly:

.L3:
    mov     r8d, DWORD PTR [rsi+rax*4]
    add     r8d, DWORD PTR [rdi+rax*4]
    mov     DWORD PTR [rdx+rax*4], r8d
    add     rax, 1
    cmp     rcx, rax
    jne     .L3

This loop will be limited by the complex addressing limitation to 1.5 cycles per iteration, since there are 1 store that uses complex addressing, plus one load.

We could use separate pointers for each array and increment all of them, like:

.L3:
    mov     r8d, DWORD PTR [rsi]
    add     r8d, DWORD PTR [rdi]
    mov     DWORD PTR [rdx], r8d
    add     rsi, 4
    add     rdi, 4
    add     rdx, 4
    cmp     rcx, rdx
    jne     .L3

Everything uses simple addressing, great! However, we’ve added two uops and so the speed limit is pipeline width: 7/4 = 1.75, so it will probably be slower than before.

The trick is to only use simple addressing for the store, and calculate the load addresses relative to the store address:

.L3:
    mov     eax, DWORD PTR [rdx+rsi] ; rsi and rdi have been adjusted so that
    add     eax, DWORD PTR [rdx+rdi] ; rsi+rdx points to a and rdi+rdx to b
    mov     DWORD PTR [rdx], eax
    add     rdx, 4
    cmp     rcx, rdx
    ja      .L3

When working in a higher level language, you may not always be able to convince the compiler to generate the code we want as it might simply see through our transformations. In this case, however, we can convince gcc to generate the code we want by writing out the transformation ourselves:

void sum2(const int *a, const int *b, int *d, size_t len) {
    int *end = d + len;
    ptrdiff_t a_offset = (a - d);
    ptrdiff_t b_offset = (b - d);
    for (; d < end; d++) {
        *d = *(d + a_offset) + *(d + b_offset);
    }
}

This is UB all over the place if you pass in arbitrary arrays, because we subtract unrelated pointers (a - d) and use pointer arithmetic which outside of the bounds of the original array (d + a_offset) - but I’m not aware of any compiler that will take advantage of this (as a standalone function it seems unlikely that will ever be the case: because the arrays all could be related, so the function isn’t always UB). Still you should avoid stuff like this unless you have a really good reason to push the boundaries. You could achieve the same effect with uintptr_t which isn’t UB but only unspecified, and that will work on every platform I’m aware of.

Another way to get simple addressing without adding too much overhead for separate loop pointers is to unroll the loop a little bit. The increment only needs to be done once per iteration, so every unroll reduces the cost.

Note that even if stores have non-complex addressing, it may not be possible to sustain 2 loads/1 store, because the store may sometimes choose one of the port 2 or port 3 AGUs instead, starving a load that cycle.

Memory and Cache Bandwidth

The load and store limits discuss the ideal scenario where loads and stores hit in L1 (or hit in L1 “on average” enough to not slow things down), but there are throughput limits for other levels of the cache. If your know your loads hit primarily in a particular level of the cache you can use these limits to get a speed limit.

The limits are listed in cache lines per cycle and not in bytes, because that’s how you need to count the accesses: in unique cache lines accessed. The hardware transfers full lines. You can achieve these limits, but you may not be able to consume all the bytes from each cache line, because demand accesses to the L1 cache cannot occur on the same cycle that the L1 cache receives data from the outer cache levels. So, for example, the L2 can provide 64 bytes of data to the L1 cache per cycle, but you cannot also access 64 bytes every cycle since the L1 cannot satisfy those reads from the core and the incoming data from the L2 every cycle. All the gory details are over here.

Vendor	Microarchitecture	L2	L3 (Shared)
Intel	CNL	0.75	0.2 - 0.3
Intel	SKX	1	~0.1 (?)
Intel	SKL	1	0.2 - 0.3
Intel	HSW	0.5	0.2 - 0.3
AMD	Zen	0.5	0.5
AMD	Zen 2	0.5	0.5
AMD	Zen 3	0.5	0.5

The very poor figure of 0.1 cache lines per cycle (about 6-7 bytes a cycle) from L3 on SKX is at odds with Intel’s manuals, but it’s what I measured on a W-2104. For architectures earlier than Haswell I think the numbers will be similar back to Sandy Bridge.

If your accesses go to a mix of cache levels: you will probably get slightly worse bandwidth than what you’d get if you calculated the speed limit based on the assumption the cache levels can be accessed independently.

Memory bandwidth is a bit more complicated. You can calculate your theoretical value based on your memory channel count (or look it up on ARK), but this is complicated by the fact that many chips cannot reach the maximum bandwidth from a single core since they cannot generate enough requests to saturate the DRAM bus, due to limited fill buffers. So you are better off just measuring it.

Remedies

The usual remedies to improve caching performance apply: pack your structures more tightly, try to ensure locality of reference and prefetcher friendly access patterns, use cache blocking, etc.

Carried Dependency Chains

Sum of latencies in the longest carried dependency chain

Everything discussed so far is a limited based on throughput - the machine can only do so many things per cycle, and we count the number of things and apply those limits to determine the speed limit. We don’t care about how long each instruction takes to finish (as long as we can start one per cycle), or from where it gets its inputs. In practice, that can matter a lot.

Let’s consider, for example, a modified version of the multiply loop above, one that’s a lot simpler:

for (size_t i = 0; i < len; i++) {
    uint32_t x = data[i];
    product *= x;
}

This does only a single multiplication per iteration, and compiles to the following tight loop:

.top:
    imul   eax,DWORD PTR [rdi]
    add    rdi,0x4
    cmp    rdi,rdx
    jne    .top

That’s only 3 fused uops, so our pipeline speed limit is 0.75 cycles/iteration. But wait, we know the imul needs p1, and the other two operations can go to other ports, so the p1 pressure means a limit of 1 cycle/iteration. What does the real world have to say?

$ ./uarch-bench.sh --timer=perf --test-name=cpp/mul-chain --extra-events=uops_dispatched_port.port_0#p0,uops_dispatched_port.port_1#p1,uops_dispatched_port.port_2#p2,uops_dispatched_port.port_3#p3,uops_dispatched_port.port_4#p4,uops_dispatched_port.port_5#p5,uops_dispatched_port.port_6#p6
              Benchmark      Cycles          p0          p1          p2          p3          p4          p5          p6
Chained multiplications        2.98        0.48        1.00        0.50        0.50        0.00        0.52        1.00

Bleh, 2.98 cycles, or 3x slower than we predicted.

What happened? As it turns out, the imul instruction has a latency of 3 cycles. That means that the result is not available until 3 cycles after the operation starts executing. This contrasts with 1 latency cycle for most simple arithmetic operations. Since on each iteration the multiply instruction depends on the result of the result of the previous iteration’s multiply²⁷, every multiply can only start when the previous one finished, i.e., 3 cycles later. So 3 cycles is the speed limit for this loop.

Note that we mostly care about loop carried dependencies, which are dependency chains that cross loop iterations, i.e., where some output register in one iteration is used as an input register for the same chain in the next iteration. In the example, the carried chain involves only eax, but more complex chains are common in practice. In the earlier example, the four imul instructions did form a chain:

.top:
    mov    r10d,DWORD [rdi+rcx*4+0x4] ; load
    mov    r8d,r10d                   ;
    imul   r8d,ecx                    ; imul1
    imul   r8d,edx                    ; imul2
    imul   r8d,ecx                    ; imul3
    add    rcx,0x1                    ;
    imul   r8d,r9d                    ; imul4
    mov    r9d,r10d                   ;
    add    eax,r8d                    ; add
    cmp    rcx,rsi                    ;
    jne    .top                       ;

Note how each imul depends on the previous through the input/output r8d. Finally, the result is added to eax ,and eax is indeed used as input in the next iteration, so do we have a loop-carried dependency chain? Yes - but a very small one involving only eax. The dependency chain looks like this:

iteration 1   load -> imul1 -> imul2 -> imul3 -> imul4 -> add
                                                           |
                                                           v
iteration 2   load -> imul1 -> imul2 -> imul3 -> imul4 -> add
                                                           |
                                                           v
iteration 3   load -> imul1 -> imul2 -> imul3 -> imul4 -> add
                                                           |
                                                           v
etc ...                                                    ...

So yes, there is a dependent chain there, and the imul instructions are connected to that chain, but they don’t participate in the carried part. Only the single-cycle latency add instruction participates in the carried dependency chain, so the implied speed limit is 1 cycle/iteration. In fact, all of our examples so far have had carried dependency chains, but they have all been small enough never to be the dominating factor. You may also have multiple carried dependency chains in a loop: the speed limit is set by the longest.

I’ve only touched on this topic and won’t go much further here: for a deeper look check out Fabian Giesen’s A whirlwind introduction to dataflow graphs.

Finally, you may have noticed something interesting about the benchmark result of 2.98 cycles. In every other case, the measured time was equal or slightly more than the speed limit, due to test overhead. How were we able to break the speed limit in this case and come under 3.00 cycles, albeit by less than 1%? Maybe it’s just measurement error - the clocks aren’t precise enough to time this more precisely?

Nope. The effect is real and is due to the structure of the test. We run the multiplication code shown above on a buffer of 4096 elements, so there are 4096 iterations. The benchmark loop that calls that function, itself runs 1000 iterations, each one calling the 4096-iteration inner loop. What happens to get the 2.98 is that in between each call of the inner loop, the multiplication chains can be overlapped. Each chain is 4096-elements long, but the start of each function starts a new chain:

uint32_t mul_chain(const uint32_t *data, size_t len, uint32_t m) {
    uint32_t product = 1;
    for (size_t i = 0; i < len; i++) {
      // ...

Note the product = 1 - that’s a new chain. So some small amount of overlap is possible near the end of each loop, which shaves about 80-90 cycles off the loop time (i.e., something like ~30 multiplications get to overlap). The size of the overlap is limited by the out-of-order buffer structures in the CPU, in particular the re-order buffer and scheduler.

Tools

As fun as tracing out dependency chains by hand is, you’ll eventually want a tool to do this for you. All of IACA, OSACA and llvm-mca can do this type of latency analysis and identity loop carried dependencies implicitly. For example, llvm-mca correctly identifies that this loop will take 3 cycles/iteration.

Remedies

The basic remedy is that you have to shorten or break up the dependency chains.

For example, maybe you can use lower latency instructions like addition or shift instead of multiplication. A more generally applicable trick is to turn one long dependency chain into several parallel ones. In the example above, the associativity property of integer multiplication²⁸ allows us to do the multiplications in any order. In particular, we could accumulate every third element into a separate product and multiply them all at the end, like so:

    uint32_t p1 = 1, p2 = 1, p3 = 1, p4 = 1;
    for (size_t i = 0; i < len; i += 4) {
        p1 *= data[i + 0];
        p2 *= data[i + 1];
        p3 *= data[i + 2];
        p4 *= data[i + 3];
    }
    uint32_t product = p1 * p2 * p3 * p4;

This test runs at 1.00 cycles per iteration, so the latency chain speed limit has been removed. Well, it’s still there: each iteration above takes at least 3 cycles because of the four carried dependency chains between each iteration, but since we are doing 4x as much work now, the p1 port limit becomes the dominant limit.

Compilers can sometimes make this transformation for you, but not always. In particular, gcc is reluctant to unroll loops at any optimization level, and unrolling loops is often a prerequisite for this transformation, so often you are stuck doing it by hand.

Front End Effects

I’m going to largely gloss over this one. It really deserves a whole blog post, but in recent Intel and AMD architectures the prevalence of front-end effects being the limiting factor in loops has dropped a lot. The introduction of the uop cache and better decoders means that it is not as common as it used to be. For a complete²⁹ treatment see Agner’s microarchitecture guide, starting with section 9.1 through 9.7 for Sandy Bridge (and then the corresponding sections for each later uarch you are interested in).

If you see an effect that depends on code alignment, especially in a cyclic pattern with a period 16, 32 or 64 bytes, it is very likely to be a front-end effect. There are hacks you can use to test this.

First are simple absolute front-end limits to delivered uops/cycle depending on where the uops are coming from³⁰:

Table 1: Uops delivered per cycle

Architecture	Microcode (MSROM)	Decoder (MITE)	Uop cache (DSB)
<= Broadwell	4	4	4
>= Skylake	4	5	6

These might look like important values. I even made a table, one of only two in this whole post. They aren’t very important though, because they are all equal to or larger than the pipeline limit of 4. In fact it is hard to even carefully design a micro-benchmark which definitively shows the difference between the 5-wide decode on SKL and the 4-wide on Haswell and earlier. So you can mostly ignore these numbers.

The more important limitations are specific to the individual sources. For example:

The legacy decoder (MITE) can only handle up to 16 instruction bytes per cycle, so any time instruction length averages more than four bytes decode throughput will necessarily be lower than four. Certain patterns will have worse throughput than predicted by this formula, e.g., 7 instructions in a 16 byte block will decode in a 6-1-6-1 pattern.
Only one of the 4 or 5 legacy decoders can handle instructions which generate more than one uop, so a series of instructions which generate 2 uops will only decode at 1 per cycle (2 uops per cycle).
Only one uop cache entry (with up to 6 uops) can be accessed per cycle. For larger loops this is rarely a bottleneck, but it means that any loop that crosses a uop cache boundary (32 bytes up to and including Broadwell, 64 bytes in Skylake and beyond) will always take 2 cycles, since two uop cache entries are involved. It is not unusual to find small loops which normally take as little as 1 cycle split by such boundaries suddenly taking 2 cycles.
Instructions which use microcode, such as gather (pre-Skylake) have additional restrictions and throughput limitations.
The LSD suffers from reduced throughput at the boundary between one iteration and the next, although hardware unrolling reduces the impact of the effect. Full details are on Stack Overflow. Note that the LSD is disabled on most recent CPUs due to a bug. It is re-enabled on some of the most recent chips (CNL and maybe Cascade Lake).

Again, this is only scratching the surface - see Agner for a comprehensive treatment.

Taken Branches

Intel: 1 per 2 cycles (see exception below)

If you believe the instruction tables, one taken branch can be executed per cycle, but experiments show that this is true only for very small loops with a single backwards branch. For larger loops or any forward branches, the limit is 1 per 2 cycles.

So avoid many dense taken branches: organize the likely path instead as untaken. This is something you want to do anyways for front-end throughput and code density.

Out of Order Limits

Here we will cover several limits which all affect the effective window over which the processor can reorder instructions. These limits all have the same pattern: in order to execute instructions out of order, the CPU needs to track in-flight operations in certain structures. If any of these structures becomes full, the effect is the same: no more operations are issued until space in that structure is freed. Already issued instructions can still execute, but no more operations else will enter the pool of waiting ops. In general, we talk about the out-of-order window which is roughly the number of instructions/operations that can be in progress, counting from the oldest in-progress instruction to the newest. The limits in this section put an effective limit on this window.

While the effect is the same for each limit, the size of the structures and which operations that are tracked in them vary, so we focus on describing that.

Note that the size of the window is not a hard performance limit in itself: you can’t use it to directly establish an upper bound on cycles per iterations or whatever (i.e., the units for the window aren’t “per cycle”) - but you can use it in concert with other analysis to refine the estimate.

Until now, we have been implicitly assuming an infinite out of order window. That’s why we said, for example, that only loop carried dependencies matter when calculating dependency chains; the implicit assumption is that there is enough out-of-order magic to reorder different loop iterations to hide the effect of all the other chains. Of course, on real CPUs, there is a limit to the magic: if your loops have 1,000 instructions per iteration, and the out-of-order window is only 100 instructions, the CPU will not be able to overlap the much of each iteration at all: the different iterations are too far apart in instruction stream for significant overlap.

All the discussion here refers to the dynamic instruction stream - which is the actual stream of instructions seen by the CPU. This is opposed to the static instruction stream, which is the series of instructions as they appear in the binary. Inside a basic block, static and dynamic instruction streams are the same: the difference is that the dynamic stream follows all jumps, so it is a trace of actual execution.

For example, take the following nested loops, with inner and outer iteration counts of 2 and 4:

    xor rdx, rdx
    mov rax, 2

outer:
    mov rcx, 4

inner:
    add rdx, rcx
    dec rcx
    jnz inner

    dec rax
    jnz outer

The static instruction stream is just want you see above, 8 instructions in total. The dynamic instruction stream traces what happens at runtime, so the inner loop appears 8 times, for example:

    xor rdx, rdx
    mov rax, 2

    ; first iteration of outer loop
    mov rcx, 4

    ; inner loop 4x
    add rdx, rcx
    dec rcx
    jnz inner

    add rdx, rcx
    dec rcx
    jnz inner

    add rdx, rcx
    dec rcx
    jnz inner

    add rdx, rcx
    dec rcx
    jnz inner

    jnz outer

    ; second iteration of outer loop
    mov rcx, 4

    ; inner loop 4x
    add rdx, rcx
    dec rcx
    jnz inner

    add rdx, rcx
    dec rcx
    jnz inner

    add rdx, rcx
    dec rcx
    jnz inner

    add rdx, rcx
    dec rcx
    jnz inner

    jnz outer

    ; done!

All that to say that when you are thinking about out of order window, you have to think about the dynamic instruction/uop stream, not the static one. For a loop body with no jumps or calls, you can ignore this distinction. We also talk about older, oldest, youngest, etc instructions - this simply refers to the relative position of instructions or operations in the dynamic stream: the first encountered instructions are the oldest (in the stream above, xor rdx, rdx is the oldest) and the most recently encountered instructions are the youngest.

With that background out of the way, let’s look at the various OoO limits next. Most of these limits have the same effect which is to limit the available out-of-order window, stalling issue until a resource becomes available. They differ mostly in what they count, and how many of that thing can be buffered.

First, here’s a big table of all the resource sizes³¹ we’ll talk about the following sections.

Vendor	Microarch	ROB Size	Sched (RS)	Load Buffer	Store Buffer	Integer PRF	Vector PRF	Branches	Calls
Intel	Sandy Bridge	168	54	64	36	160	144	48	15
Intel	Ivy Bridge	168	54	64	36	160	144	48	15
Intel	Haswell	192	60	72	42	168	168	48	14
Intel	Broadwell	192	64	72	42	168	168	48	14
Intel	Skylake	224	97	72	56	180	168	48	14?

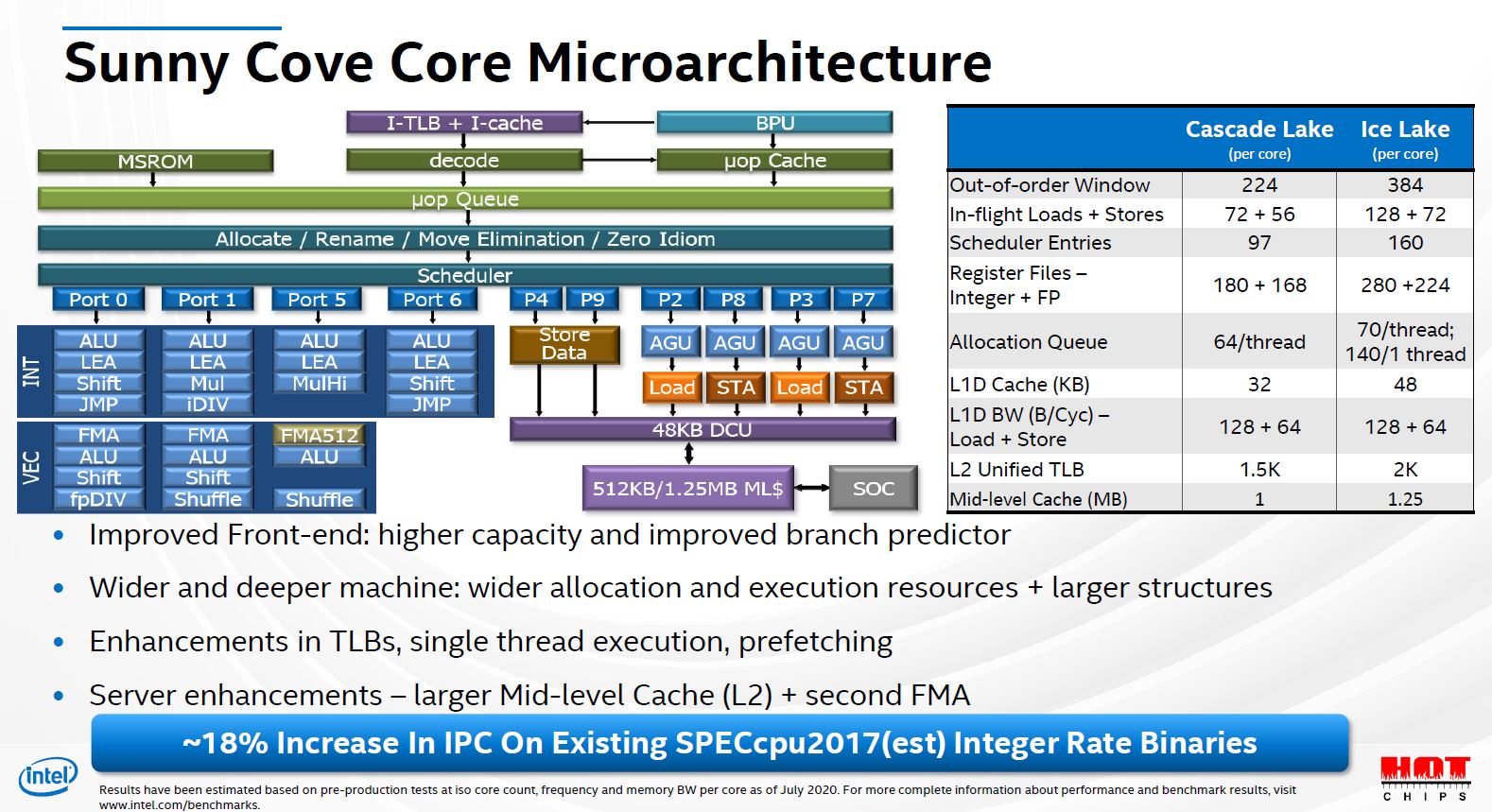

Intel	Sunny Cove³²	352	160	128	72	280	224	?	?
AMD	Zen	192	180³³	72³⁴	44	168	160	?	?
AMD	Zen 2	224	188³⁵	72³⁴	48	180	160	?	?
AMD	Zen 3³⁶	256	>192³⁷	72³⁴	64	192	?	?	?
Apple	M1 Firestorm³⁸	636³⁹	326⁴⁰	130	60	~380	~434	~144	?
Apple	M1 Icestorm⁴¹	111³⁹	71⁴²	30	18	~79	~87	?	?
Amazon	Graviton 2⁴³	~124	~48	~62	~40	~92	~96	~46	?

Reorder Buffer Size

The ROB is the largest and most general out of order buffer: all uops, even those that don’t execute such as nop or zeroing idioms, take a slot in the ROB⁴⁴. This structure holds instructions from the point at which they are allocated (issued, in Intel speak) until they retire. It puts a hard upper limit on the OoO window as measured from the oldest un-retired instruction to the youngest instruction that can be issued. On Intel, the ROB holds micro-fused ops, so the size is measured in the fused-domain.

As an example, a load instruction takes a cache miss which means it cannot retire until the miss is complete. Let’s say the load takes 300 cycles to finish, which is a typical latency. Then, on an Haswell machine with a ROB size of 192, at most 191 additional instructions can execute while waiting for the load: at that point the ROB window is exhausted and the core stalls. This puts an upper bound on the maximum IPC of the region of 192 / 300 = 0.64. It also puts a bound on the maximum MLP achievable, since only loads that appear in the next 191 instructions can (potentially) execute in parallel with the original miss. In fact, this behavior is used by Henry Wong’s robsize tool to measure the ROB size and other OoO buffer sizes, using a missed load followed by a series of filler instructions and finally another load miss. By varying the number of filler instructions and checking whether the loads executed in parallel or serially, the ROB size can be determined experimentally.

Remedies

If you are hitting the ROB size limit, you should switch from optimizing the code for the usual metrics and instead try to reduce the number of uops. For example, a slower (longer latency, less throughput) instruction can be used to replace two instructions which would otherwise be faster. Similarly, micro-fusion helps because the ROB limit counts in the fused domain.

Reorganizing the instruction stream can help too: if you hit the ROB limit after a specific long-latency instruction (usually a load miss) you may want to move expensive instructions into the shadow of that instruction so they can execute while the long latency instruction executes. In this way, there will be less work to do when the instruction completes. Similarly, you may want to “jam” loads that miss together: rather than spreading them out where they would naturally occur, putting them close together allows more of them to fit in the ROB window.

In the specific case of load misses, software prefetching can help a lot: it enables you to start a load early, but prefetches can retire before the load completes, so there is no stalling. For example, if you issue the prefetch 200 instructions before the demand load instruction, you have essentially broadened the ROB by 200 instructions as it applies to that load.

Load Buffer

Every load operation, needs a load buffer entry. This means the total OoO window is limited by the number loads appearing in the window. Typical load buffer sizes (72 on SKL) seem to be about one third of the ROB size, so if more than about one out of three operations is a load, you are more likely to be limited by the load buffer than the ROB.

Gathers need as many entries as there are loaded elements to load in the gather. Sometimes loads are hidden - remember that things like pop involve a load: in general anything that executes an op on p2 or p3 which is not a store (i.e., does not execute anything on p4) needs an entry in the load buffer.

Remedies

First, you should evaluate whether getting under this limit will be helpful: it may be that you will almost immediately hit another OoO limit, and it also may be that increasing the OoO window isn’t that useful if the extra included instructions can’t execute or aren’t a bottleneck.

In any case, the remedy is to use fewer loads, or in some cases to reorganize loads relative to other instructions so that the window implied by the full load buffer contains the most useful instructions (in particular, contains long latency instructions like load misses). You can try to combine narrower loads into wider ones. You can ensure you keep values in registers as much as possible, and inline functions that would otherwise pass arguments through memory (e.g., certain structures) to avoid pointless loads. If you need to spill some registers, consider spilling registers to xmm or ymm vector registers rather than the stack.

Store Buffer

Similarly to the load buffer, the store buffer is required for every operation that involves a store. In fact, filling up the store buffer is pretty much the only way stores can bottleneck performance. Unlike loads, nobody is waiting for a store to complete, except in the case of store-to-load forwarding - but there, by definition, the value is sitting inside the store queue ready to use, so there is no equivalent of the long load miss which blocks dependent operations. You can have long store misses, but they happen after the store has already retired and is sitting in the store buffer (or write-combining buffer). So stores primarily cause a problem if there are enough of them such that the store buffer fill up.

Store buffers are usually smaller than load buffers, about two thirds the size, typically. This reflects the fact that most programs have more loads than stores.

Remedies

Similar to the load buffer, you want less stores. Ensure you aren’t doing unnecessary spilling to the stack, that you merge stores where possible, that you aren’t doing dead stores (e.g., zeroing a structure before immediately overwriting it anyways) and so on. On some platform giving the compiler more information about array of structure alignment helps it merge stores.

Vectorization of loops with consecutive stores helps a lot since it can turn (for example) 8 32-bit stores into a single 256-bit store, which only takes one entry in the store buffer.

Scatter operations available in AVX-512 don’t really help: they take one store buffer entry per element stored.

Scheduler

After an op is issued, it sits in the reservation station (scheduler) until it is able to execute. This structure is generally much smaller than the ROB, about 40-90 entries on modern chips. If this structure fills up, no more operations can issue, even if the other structures have plenty of room. This will occur if there are too many instructions dependent on earlier instructions which haven’t completed yet. A typical example is a load which misses in the cache, followed by many instructions which depend on that load. Those instructions won’t leave the scheduler until the load completes, and if they are enough to fill the structure no further instructions will be evaluated.

Remedies

Organize your code so that there are some independent instructions to execute following long latency operations, which don’t depend on the result of those operations.

Consider replacing data dependencies (e.g., conditional moves or other arithmetic) with control dependencies, since the latter are predicted and don’t cause a dependency. This also has the advantage of executing many more instructions in parallel, but may lead to branch mispredictions.

Register File Size Limit

Every instruction with a destination register requires a renamed physical register, which is only reclaimed when the instruction is retired. These registers come from the physical regsiter file (PRF). So to fill the entire ROB with operations that require a destination register, you’ll need a PRF as large as the ROB. In practice, there are two separate register files on Intel and AMD chips: the integer registers file used for scalar registers such as rax and the vector register file used for SIMD registers such as xmm0, ymm0 and zmm0, and the sizes of these register files as shown above are somewhat smaller than the ROB size.

Not all of the registers are actually available for renaming: some are used to store the non-speculative values of the architectural registers, or for other purposes, so the available number of register is about 16 to 32 less than the values shown above. Henry Wong has a great description of observed available registers on the article I linked earlier, including some non-ideal behaviors that I’ve glossed over here. You can calculate the number of available registers on new architectures using the robsize tool.

The upshot is that for given ROB sizes, there are only enough registers available in each file for about 75% of the entries.

In practice, some instructions such as branches, zeroing idioms⁴⁵ don’t consume PRF entries, which limit you hit depends on that ratio. Since integer and FP PRFs are distinct on recent Intel, you can consume from each PRF independently: meaning that vectorized code mixed with at least some GP code is unlikely to hit the PRF limit before it hits the ROB limit.

The effect of hitting the PRF limit is the same as the ROB size limit.

Remedies

There’s not all much you can do for this one beyond the stuff discussed in the ROB limit entry section. Maybe try to mix integer and vector code so you consume from each register file. Make sure you are using zeroing idioms like xor eax,eax rather than mov eax, 0 but you should already be doing that.

Branches in Flight

Intel: Maximum of 48 branches in flight

Modern Intel chips seem to have a limit of branches in flight, where in flight refers to branches that have not yet retired, usually because some older operation hasn’t yet completed. I first saw this limit described and measured on Henry Wong’s blog, although it seems like David Kanter had the scoop way back in 2012:

The branch order buffer, which is used to rollback to known good architectural state in the case of a misprediction is still 48 entries, as with Sandy Bridge.

The effects of exceeding the branch order buffer limit are the same as for the ROB limit.

Branches here refers to both conditional jumps (jcc where cc is some conditional code) and indirect jumps (things like jmp [rax]).

Remedies

Although you will rarely hit this limit, the solution is fewer branches. Try to move unnecessary checks out of the hot path, or combine several checks into one. Try to organize multi-predicate conditions such that you can short-circuit the evaluation after the first check (so the subsequent checks don’t appear in the dynamic instruction stream). Consider replacing N 2-way (true/false) conditional jumps with one indirect jump with N^2 targets as this counts as only “one” instead of N against the branch limit. Consider conditional moves or other branch-free techniques.

Ensure that branches can retire as soon as possible, although in practice there often isn’t much opportunity to do this when dealing with already well-compiled code.

Note that many of these are the same things you might consider to reduce branch mispredictions, although they apply here even if there are no mispredictions.

Calls in Flight

Intel: 14-15

Only 14-15 calls can be in-flight at once, exactly analogous to the limitation on in-flight branches described above, except it applies to the call instruction rather than branches. As with the branches in-flight restriction, this comes from testing by Henry Wong, and in this case I am not aware of an earlier source.

Remedies

Reduce the number of call instructions you make. Consider ensuring the calls can be inlined, or partial inlining (a fast path that can be inlined combined with a slow path that isn’t). In extreme cases you might want to replace call + ret pairs with unconditional jmp, saving the return address in a register, plus indirect branch to return to the saved address. I.e. replace the following:

callee:
    ; function code goes here
    ret

; caller code
    call callee

With the following (which is essentially emulating the JAL instruction:

callee:
  ; function code goes here
  jmp [r15] ; return to address stashed in r15

; caller code
    movabs r15, next
    jmp callee
next:

This pattern is hard to achieve in practice in a high level language, although you might have luck emulating it with gcc’s labels as values functionality.

Thank You

That’s it for now, if you made it this far I hope you found it useful.

Thanks to Paul A. Clayton, Adrian, Peter E. Fry, anon, nkurz, maztheman, hyperpape, Arseny Kapoulkine, Thomas Applencourt, haberman, caf, Nick Craver, pczarn, Bruce Dawson, Fabian Giesen, glaebhoerl and Matthew Fernandez for pointing out errors and other feedback.

Thanks to Daniel Lemire for providing access to hardware on which I was able to test and verify some of these limits.

Comments

You can leave any comments or questions using the form below.

This post was discussed on Hacker News.

If you liked this post, check out the homepage for others you might enjoy.

I think this speed limit term came from Daniel Lemire. I guess I liked it because I have used it a lot since then. ↩
That said, I am quite sure you can reach or at least approach closely these limits as I’ve tested most of them myself. Sure, a lot of these are micro-benchmarks, but you can get there in real code too. If you find some code that you think should reach a limit, but can’t - I’m interested to hear about it. ↩
The distinction between fused domain and unfused domain uops applies to instructions with a memory source or destination. For example, an instruction like add eax, [rsp] means “add the value pointed to by rsp to register eax. During execution, two separate micro-operations are created: one for the load and for the add instruction, this is the so-called unfused domain. However, prior to execution, the uops are kept together and only count as one against the pipeline width limit, this is the so called fused domain. Good list of instruction characteristics like Agner Fog’s instruction tables list both values. AMD macro-operations are largely similar to Intel fused-domain ops. ↩
You can this benchmark from uarch-bench: ./uarch-bench.sh --test-name=cpp/sum-halves ↩
Well it’s not exactly 14, it’s 14.03 - the extra 0.03 mostly comes from the fact that we call the benchmark repeatedly using an outer loop. Every time the sum loop terminates (it iterates over an array of 1024 elements), we suffer a branch misprediction and the CPU has gone ahead and executed an extra (falsely speculated) iteration or so of the loop, which is wasted work. You can see this by comparing with uops_retired.retire_slots which is also issued uops, but only counting ones which actually retired and not those which were on wrongly speculated path: this reads 14.01, so 2 out of 3 extra uops came from the misprediction. The other uop is just the outer loop overhead. ↩
It puts in a ton of unnecessary shuffles probably to try reproduce the exact structure of the unrolled-by-two loop (removing the unroll is likely to help). In gcc’s defense, clang 5 does even worse, running almost twice as slow as gcc. ↩
Not fully described is basically a ephemism for (partly) wrong. The manual describes a test you can use to determine if delamination will occur, but it gives the wrong result for many instructions. ↩
Here I’m using issued as Intel uses it, indicating the moment an operation is renamed and send to the reservation station (RS) awaiting execution (which can happen after all its operands are ready). At the moment the operation leaves the reservation station to execute it is said to be dispatched. This terminology is exactly reversed from that used by some other CPU documentation and most academic literature: the terms issue and dispatch are also used but with meanings flipped. ↩
We are going to mostly gloss over the difference between ports and execution units here. In practice, operations are not dispatched directly to an execution unit, but rather pass though a numbered port, and we treat the port as the constrained resource. The relationship between ports and execution units is normally 1:N (i.e., each port gates access a private group of EUs), but other arrangements are possible. ↩
Now memory access doesn’t necessarily mean that the main memory (RAM) of the system is accessed: just that the machine code contains instructions which involve memory access. For most programs the overwhelming majority of these accesses hit in cache and never get to main memory. ↩
Both of the Arm CPUs on this list support LDP and STP instructions which store a pair of registers, and both can merge this into a single wider store so it only counts as one access and such paired accesses also count as one access in this table. ↩
Two stores can be sustained only with significant restrictions on the store pattern, as detailed below. ↩ ↩²
Every mainstream core since Sandy Bridge (inclusive) has two read ports. ↩
Zen 3 can do three general-purpose loads per cycle, but only two vector (128b or larger) loads per cycle. ↩
Bank conflicts occur in a banked cache design when two loads try to access the same bank. Per Fabian Ivy Bridge and earlier had banked cache designs, as does Zen1. The Intel chips have 16 banks per line (bank selected by bits [5:2] of the address), while Zen1 has 8 banks per line (bits [5:3] used). A load uses any bank it overlaps. I also find bank-conflict like effects on Graviton 2 (only tested for stores) as many patterns of stores, especially unaligned, achieve less than the theoretical maximum of 2/cycle – even when the stores are all to the same cache line. ↩
Yes, it’s written kind of weirdly because this generates better assembly than say a forwards for loop. In particular, we want the final check to be for i != 0, since that comes for free on x86 (the result of the i -= 2 will set the zero flag), which ends up dictating the rest of the loop. Another possibility is to adjust the data pointer which lets you use i and i + 1 as the indices into the array. ↩
Well, on Haswell and later there are 5 fused-domain uops, but on earlier architectures there are 7, because ecx, DWORD PTR [rdi+r8*4] cannot fully fuse due to its use of an indexed addressing mode (i.e., so-called delamination occurs). ↩
You can run the tests for this item yourself in uarch-bench with ./uarch-bench.sh --timer=perf --test-name=cpp/add-indirect*. ↩
Meaning that the maximum theoretical throughput is 1 per 4 cycles on Intel based on the load limit, while the actual measured throughput is slightly worse at 1 per 5. Most of the gather instructions follow this pattern: a throuhgput 1 or 2 cycles worse than that suggested by the load limit. ↩
As mentioned, Zen 1 can only do one 256-bit load per cycle, but two loads of other types, and Zen 3 can do two vector loads but three loads of other types. Still, vector loads, when they can be used, are usually very advantageous on these CPUs. ↩
In fact, in a twist of irony, the most efficient way to get stuff from vector registers into scalar registers, in a throughput sense, is to store it to memory and then reload each item one-by-one into scalar registers. So vector loads cannot help you break the load speed limit if you need all loaded values in scalar registers. ↩
The dance with std::memcpy makes this legal C++, but it’s still not portable in principle: it could produce different results on machines with really weird endianess (neither little nor big endian). The values of sum1 and sum2 will be reversed on little vs big-endian machines, although the final result sum1 + sum2 will be the same. ↩
On Zen 3, only 64-bit or smaller stores from general purpose stores can achieve two per cycle. Vector stores are limited to one per cycle. ↩
One to move the element to a bucket and one to update the bucket pointer. ↩
I’m weaseling around here because it is possible that this penalty isn’t cumulative with other stores but just represents worst case where many such stores occur back-to-back but the performance when mixed with non-crossing stores is better than this worst case. For example 5 non-crossing store + 1 crossing one might not count as 10 but rather 6 or 7. More testing needed on that one. Suffice it to say you should avoid boundary-crossing stores if you can. Additional details at RWT. ↩
One reason these limits arise is that both loads and stores require an address generation unit to perform addressing calculations. These units are shared between load and store units, and there may be fewer of these units than there are load and store units. Other reasons include a limited number of busses to/from the L1 cache and or sharing of resources between the read and write ports of the L1 cache. ↩
Note that in imul eax,DWORD PTR [rdi] register eax is use both as one of the arguments for the multiply, and as the result register, in the same way as y *= x means y = y * x. Such “two operand” instructions where the destination is the same as one of the operands forms are common in x86, especially in scalar code where they are usually the only option - although new SIMD instructions using the AVX and subsequent instruction sets use three argument forms, like vpaddb xmm0, xmm1, xmm2 where the destination is distinct from the sources. Most other extant ISAs, usually RISC or RISC-influenced, have always used the three operand form. ↩
I mention integer multiplication for a reason: this property does not apply to floating point multiplication as performed by CPUs, and the same is true for most of the usual mathematic properties of operators when applied to floating point. For this reason, compilers often cannot perform transformations that they could for integer math, because it might change the result, even if only slightly. The result won’t necessarily be worse - just different than if the operations had occurred in source order. You can loosen these chains that hold the compiler back with -ffast-math. ↩
Complete up until Broadwell more or less. The guide does not reflect some newer changes such as the uop cache granularity being 64 bytes rather than 32 bytes on Skylake. ↩
Note that LSD doesn’t appear here, because there the measurement doesn’t make sense - these numbers represent the rate at which each decoding-type component can deliver uops to the IDQ, but the LSD is inside the IDQ: when active the renamer repeatedly accesses the uops in the IDQ without consuming them. So there is no delivery rate to the IDQ because no uops are delivered. ↩
In this table, note that the Intel and Zen scheduler (RS) sizes are not directly comparable, since Intel uses a unified scheduler for GP and SIMD ops, with “all” (actually most) scheduler entries available to most uops, while AMD has one scheduler (RS) per port. The numbers shown for AMD are the sum of all the ALU and AGU scheduler sizes. ↩
Ice Lake/Sunny Cove data from robsize tool, Ice Lake client and Ice Lake server slides. The value of 384 for “out-of-order window (i.e., the ROB size), in the last link is a typo – it should be 352. ↩
The Zen scheduler has 4x14 GP ALU schedulers, a 96 entry FP scheduler and 2x14 AGU/mem schedulers. ↩
AnandTech reports an LSQ of 44 entries plus an address generation queue of 28 entries for a total of 72, but I don’t know the details of this structure. The LSQ on Zen doesn’t act in the same way as that on Intel: entries seem to be freed before retirement (perhaps after the load completes or after no earlier loads are outstanding) and so can’t easily be measured by robsize. ↩ ↩² ↩³
The Zen 2 scheduler has 4x16 GP ALU schedulers, a 96 entry (?) FP scheduler and a 1x28 AGU/mem scheduler for a total of 188 entries. ↩
Most of the Zen 3 buffer size data from AMD slides via AnandTech. ↩
The Zen 3 scheduler has 4x24 GP ALU/mem schedulers, and an unknown number (but larger than 96) of FP/SIMD scheduler entries. ↩
Most of the M1 Firestorm data comes from Dougall J’s extensive analysis and reverse engineering (more details) of the M1 chip. Earlier revisions had numbers mostly from AnandTech’s deep dive on M1, by Andrei, using Veedrac’s microarchitecturometer which is itself based on the robsize tool. ↩
The M1 Firestorm and Icestorm cores don’t appear to have a traditional one-uop-one-entry ROB, but rather a ~330 (Firestorm) or 60 entry (Icestorm) structure which has something like macro entries which can hold up to 7 uops which can retire as a group. Discovered by Dougall J who describes them in more detail under Other limits on his Firestorm summary. Instead of listing this value, which would greatly underestimate the ROB size compared to the other microarchitectures in most scenarios, I use the in-flight renames value which is mostly 1:1 to uops and is more directly comparable with the values for non-Apple chips. In practice, you’ll hit this rename limit or one of the physical register file limits long before you get to the 330 * 7 = ~2,310 outstanding ops (Firestorm) implied by totally filling the macro-entry structure. ↩ ↩²
The M1 Firestorm apparently has 326 scheduler entries across 14 execution ports. From Dougall’s breakdown we have six schedulers for the 6 integer ALU units of 24, 26, 16, 12, 28 and 28 entries, a 48-entry scheduler shared between the load, store and AMX units, and 4 x 36 entry schedulers for the 4 NEON SIMD units. ↩
The M1 Icestorm data comes from Dougall J’s extensive analysis and reverse engineering (see also more details here) of the M1 chip. ↩
The M1 Icestorm apparently has 71 scheduler entries across 7 execution ports. From Dougall’s breakdown we have 3 x 9-entry, 18 entry and 2 x 13 entry schedulers for the general purpose, load/store/AMX and SIMD units, respectively. ↩
These numbers I measured myself using a modified version of Veerdac’s microarchitecturometer which is itself based on robsize (but unlike robsize supports Arm 64-bit platforms). My results for ROB size are available here and with nop as the payload here (the latter test indicating that nop compression does not appear to be present on Graviton 2). ]Scheduler size results are available](/assets/speed-limits/g2results/depadd-aarch64.svg), using instructions which are dependent on the fencing loads. There are also load and store buffer results, as well as integer PRF and SIMD PRF results. This test indicates that the integer and SIMD PRFs are not shared. It isn’t shown in the table, but this result testing cmp indicates that there is a separate set of renamed flag registers with ~36 entries. These results indicate that up to 46 calls can be in flight at once. There are even more results not mentioned here. ↩
Well this is at least true on Intel. Recent chips from AMD, Apple and others seem to use nop compression to pack several nops into one ROB slot: so in this case we can imagine that each nop takes only a fraction of a slot. It is not impossible to imagine an microarchitecture that entire avoids putting nops in the ROB. ↩
Possibly also including RMW and compare-with-memory instructions, but it depends on the flags implementation. Current Intel chips seem to include flag register bits attached to each integer PRF entry, so an instruction that produces flags consumes a PRF entry even if it does not also produce an integer result. ↩

Comments

Noah Zuo • May 9th, 2022 12:57

Amazing post!

Would you mind telling me where to collect those limit data of all kinds of CPUs?

↪︎ Reply to Noah Zuo

Author Travis Downs • May 11th, 2022 00:11

There’s no single place. Many of them are arrived at by testing, by myself and others. The footnotes for some of the tables refer to many of the sources, see e.g., the OOO resource table.

JWang • February 2th, 2022 19:04

Hello! Thank you for the very informative post. I have a question on this example

for (size_t i = 0; i < len; i += 4) { p1 *= data[i + 0]; p2 *= data[i + 1]; p3 *= data[i + 2]; p4 *= data[i + 3]; }

You mentioned that “each iteration above takes at least 3 cycles because of the four carried dependency chains between each iteration,”. Does this refer to a Intel CPU, like Skylake? Since there is only one iMul unit in each core, all 4 lines in one iteration compete for the iMul, and iMul is not pipelined, so shouldn’t there be at least 12 cycles in each iteration?

Thanks!

↪︎ Reply to JWang

Author Travis Downs • February 2th, 2022 22:37

Hi JWang,

The multiplication unit is pipelined on modern Intel CPUs (going back at least to Conroe, and can sustain 1 multiply per cycle. So the four multiplies in each iteration have a steady state inverse throughput of 4 cycles, best case.

Andrey Semashev • April 7th, 2021 09:56

In Complex Addressing Limit Remedies, first two asm code samples, you probably want to use a step of 8 instead of 4, as you’re storing a 64-bit rdx.

↪︎ Reply to Andrey Semashev

jpaasen • March 2th, 2021 13:43

Hi,

I have tested the store-on-port-7 “hack” (with simple addressing on write). https://godbolt.org/z/PPutUu

However, gcc seems to have problems with this code if you try to add loop unrolling -funroll-loops, which is also crucial when you try to achieve maximum performance when using AVX/FMA intrinsic.

With clang I’m able to generate unrolled and vectorized code with simple addressing, but it looks like gcc is incapable of this.

This thread: https://gcc.gnu.org/bugzilla/show_bug.cgi?id=88760 is discussing some shortcomings in gcc compared with clang.

You don’t happen to know if it is possible to generate unrolled and vectorized code with simple addressing?

Thanks

↪︎ Reply to jpaasen

Author Travis Downs • April 11th, 2021 05:03

Well in your linked godbolt, your sum2 version seems to successfully use simple addressing for the store, even with -funroll-loops?

That said, if it wasn’t working you could almost certainly force simple addressing by laundering the address to store though an empty asm that “potentially modifies” the address (the +r output constraint), like this. At some point though, when you know exactly the asm you want and are trying to trick every supported version of the compiler into producing it, why not just check the assembly into your project and assemble that?

Well, there are a lot of reasons, but sometimes it’s an appealing idea…

Noah Goldstein • January 13th, 2021 05:00

Hi,

You seem to say that L1d cache cannot both retrieve from L2 and write to the core in the same cycle

You can achieve these limits, but you may not be able to consume all the bytes from each cache line, because demand accesses to the L1 cache cannot occur on the same cycle that the L1 cache receives data from the outer cache levels. So, for example, the L2 can provide 64 bytes of data to the L1 cache per cycle, but you cannot also access 64 bytes every cycle since the L1 cannot satisfy those reads from the core and the incoming data from the L2 every cycle.

But in another article you seem to say the opposite (about skylake). https://community.intel.com/t5/Software-Tuning-Performance/Haswell-L2-cache-bandwidth-to-L1-64-bytes-cycle/m-p/1014887/highlight/true#M3863

Can you explain what I am missing between these two explinations? Thank you!

↪︎ Reply to Noah Goldstein

Author Travis Downs • January 15th, 2021 08:58

Hi Noah,

Good catch!

There is a subtle difference between the two claims that explains the apparent inconsistency.

Based on my tests, the L1 cache itself cannot service both a request from the core and accept an incoming line from L2 in the same cycle (that’s the claim in this post). However, the incoming line from L2 can be used to satisfy an outstanding read of that line, bypassing the L1 cache. So a line can be accepted from L2, and a read can be satisfied, in the same cycle: but only one read and only if it is to the same line as is incoming from L2.

By the way, exploiting this is the basis for a trick that lets you increase your read bandwidth from the L2: normal linear reads can’t take advantage of the “bypass” described above, but a different pattern can and you can get ~42 bytes/cycle (3 lines every 2 cycles) instead of 32. I’ve written it up and hope to post it here soon.

Lk • January 2th, 2021 14:22

Very helpful post

I wonder if you be so kind and could give me some hints how to compile code from Pipeline Width to have same assembly as yours. I want to be aligned you your examples and do some checks. Thanks.

↪︎ Reply to Lk

Author Travis Downs • January 29th, 2021 06:16

Hi Lk, sorry in the delay in my reply.

You can find the associated benchmark here in uarch-bench. I tried compiling it just now on my current system (gcc 9.3.0) and it produced very similar but not identical code to what I have in the post (still 15 instructions, but there is some reordering and some different register choices) as this is a new compiler than what I was using when I wrote this. Still, it wouldn’t affect the conclusion.

I think I was using gcc 5.4 on Ubuntu 16.04 when I wrote this, and indeed godbolt seems to give identical assembly to that shown in the post for that version.

How fast can it go?

Table of Contents

The Limits

Big List of Caveats

Pipeline Width

Remedies

Port/Execution Unit Limits

Tools

Measuring It

Remedies

Memory Related Limits

Load Throughput Limit

Load Split Cache Lines

Remedies

Store Throughput Limit

Store Split Cache Lines

Remedies

Total Accesses Limit

Remedies

Complex Addressing Limit

Remedies

Memory and Cache Bandwidth

Remedies

Carried Dependency Chains

Tools

Remedies

Front End Effects

Taken Branches

Out of Order Limits

Reorder Buffer Size

Remedies

Load Buffer

Remedies

Store Buffer

Remedies

Scheduler

Remedies

Register File Size Limit

Remedies

Branches in Flight

Remedies

Calls in Flight

Remedies

Thank You

Comments

Comments

Add Comment
